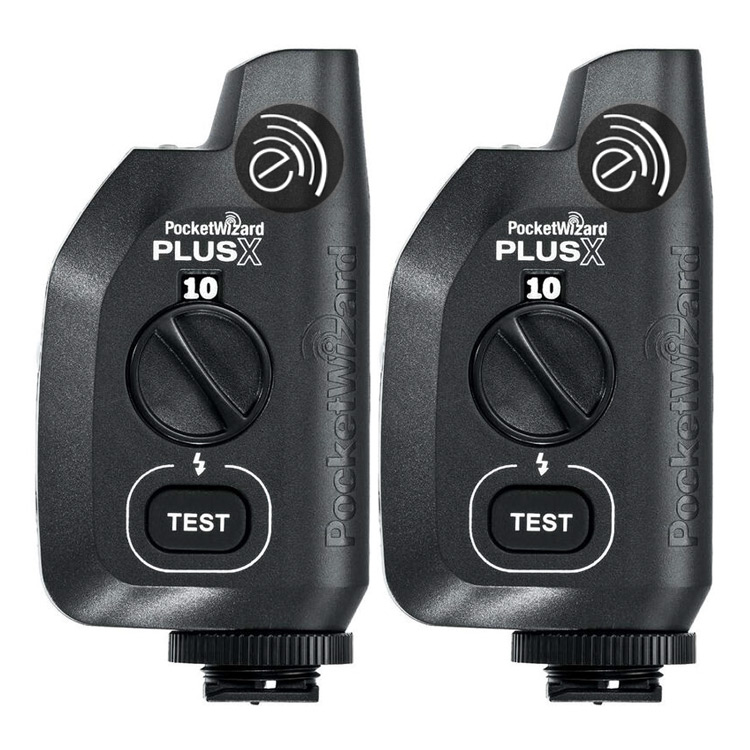

PocketWizard PlusXe Transceiver

10 Channels
With the PlusXe’s 10 Channels you can work in your own “zone.” Claim your own channel for exclusive triggering when working with other photographers at crowded events. Use different channels for different setups or looks and select them simply and intuitively with the turn of a dial. And these 10 channels are compatible with every PocketWizard ever made* set to Standard Channels 1 – 10. (* radios of the same frequency) The PlusXe can use Legacy Channels 1-10 or E Release Channels 1-10.

Backlit Channel Dial
Setting channels is as easy as turning a dial. The backlit channel dial clearly displays the set channel and because the backlight consumes so little power, it stays on all the time for convenience.

Internal Antenna
The PlusX features a durable, side profile design with an unobtrusive, internal antenna minimizing visual obstruction between you and your subject. By utilizing an internal antenna, there’s no chance to kink or break it when on location. The total height of the transceiver and antenna is less than 4.2 inches, and it weighs only 4 ounces, including batteries.

Easily Connected / Cable Port
On your camera, the PlusXe slides into the hot shoe with no cables required. For your remotes, it features one do-it-all miniphone (3.5mm or 1/8”) sync port. The most common flash ports are miniphone, phono (1/4″ or 6.3mm), or PC connections. Other miniphone connector cables are available for major brands of lighting equipment in a variety of lengths. Dedicated remote camera triggering cables are also available for popular camera systems. You can find the cables you need through our Cable Finder or by contacting us.

Auto-Sensing Transceiver
With our patented Auto-Sensing Transceiver Technology, the PlusXe Transceiver is one smart radio. The PlusXe will instantly and intelligently switch between transmitter and receiver modes keeping setup as simple as possible. The PlusXe may be set to Transmit (Tx) only when needed.

Auto-Relay Mode
Our Auto-Sensing Transceiver Technology lets you trigger a remote camera in sync with remote flashes using only 3 PocketWizard radios: the one in your hands, a PlusXe cabled to your remote camera, and the one connected to your remote flash. The PlusXe cabled to your remote camera will receive a radio signal and trigger the camera’s motor drive, then switch to transmit mode and trigger your PocketWizard-connected remote flashes on the next channel up, all automatically. Start the sequence by simply pressing the TEST button of any PocketWizard transmitter in your hands. Remote cameras require motor drive cables. Find the correct cable for your gear using the PocketWizard Cable Finder.

Status Indicator/Battery Life Indicator
The PlusXe features a tri-color LED status indicator that serves two functions. When the PlusXe sends or receives a triggering signal, the LED will glow red. During normal operation, the indicator will blink a single green blink meaning it is operating normally and the battery life is above 50%. It will blink a double amber blink when the battery is below 50% but above 25% and it will blink three red blinks when the battery life is below 25% and it’s crucial to replace the batteries.

Transmit Only Mode
There are times when you only want your radio to transmit, usually when two or more photographers are sharing a set of lights. By enabling transmit only mode, you disable the receive and auto-relay functions to make sure all your radio is doing is transmitting.

Range and Reliability
PocketWizard Plus radios are known for their range and reliability. Although the PlusXe costs less than other PocketWizard radios, you still get the range and reliability you’d expect.

Sync Speed
Ultra-fast microprocessors allow for reliable sync speeds of 1/250 for focal plane shutters and 1/500 for leaf shutters.

PocketWizard Compatible
The PlusXe is compatible with all PocketWizard transmitters and receivers including PocketWizard-enabled photo gear from Profoto, Dynalite, Norman, Photogenic and Sekonic light meters using Legacy firmware, plus all E Release firmware products, including the Raven from Fusion TLC. The PocketWizard Wireless System allows for total flexibility with whatever lights or cameras you may be working with.

Firmware Compatibility:
The PlusXe comes with the E Release firmware preinstalled. You can change the firmware PlusXe on the unit to use Legacy firmware. To switch between firmware versions:

Turn on the PlusXe.
Turn the Channel dial to Channel 4 and press Test.
Switch to Channel 3 and press Test.
Switch to Channel 2 and press Test.
Switch to Channel 1 and press Test.
Turn the radio off then on again and the new firmware should be set. Confirm by watching the LED on power up. The Legacy firmware will give one bold green blink, E Release will blink red green red green.

Detailed Compatibility:
Compatible for use with industry standard hot shoes, PC sync terminals, etc. Safe 3 volts sync voltage for modern digital camera systems.

Compatible with most flashes and triggering circuits. Can handle up to 300 volts. See our cables and adapters section for appropriate connecting cables.

PocketWizard radios are made in two different frequencies, based on regulations and approval from local governments. FCC frequency units are allowed in North and South America, while CE frequency radios are used for most of the rest of the world. A CE radio cannot talk to an FCC radio and vice versa. You must also use the same firmware protocol, either E Releases or Legacy. Please see our Wiki for details about frequency or contact us if you have any questions. Radios sold in this website are FCC frequency and can only be shipped to the US and Canada.
